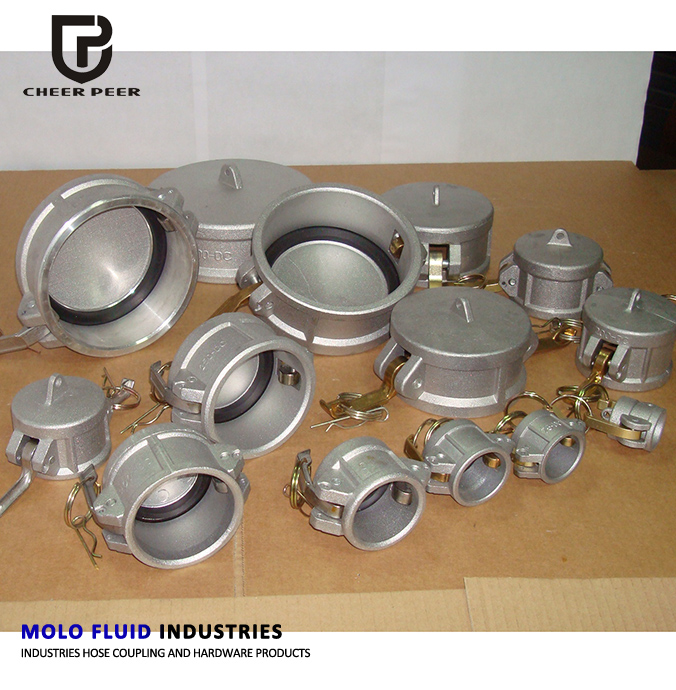

Aluminum camlock coupling DC type

Specification: MIL-A-A-59326 / EN14420-7(DIN2828)
Body Material: Aluminum Alloy A356 or A380 or ADC12
Handle material: Stainless steel or Brass or Aluminum alloy
Gasket: NBR /EPDM /VITION/ PTFE
Connections:
The female side of this adapter will only connect to male camlock.
The female threaded side of this adapter will only connect to a male NPT/BSP thread. For example, PVC or metal pipe fitting.
How it works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Cam and groove couplings, also called cam lock fittings or quick connect couplings, are used in most industries as a hose connection to avoid leakages.This kind of coupling is popular because it is considered to be a simple and economical way of re-connecting and disconnecting.
Aluminium cam and groove coupling, we can offer die casting and gravity casting ones, T6 treatment is also available.
Aluminum Camlock coupling|Camlocks|Camlock fitting|Cam lok fitting|Hose quick coupling|Cam lock hose fittings|Quick connect fitting

Aluminum camlock coupling DC type
